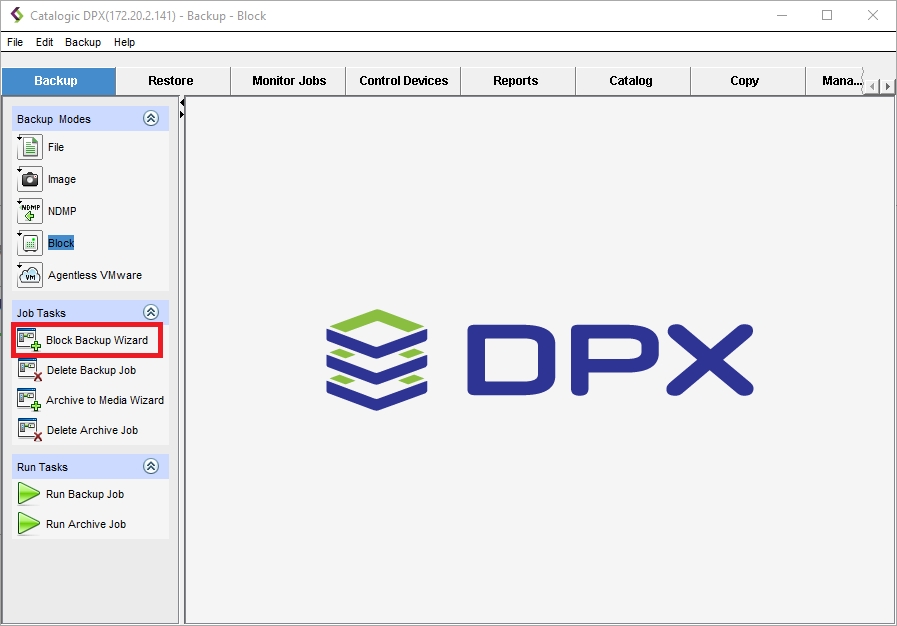

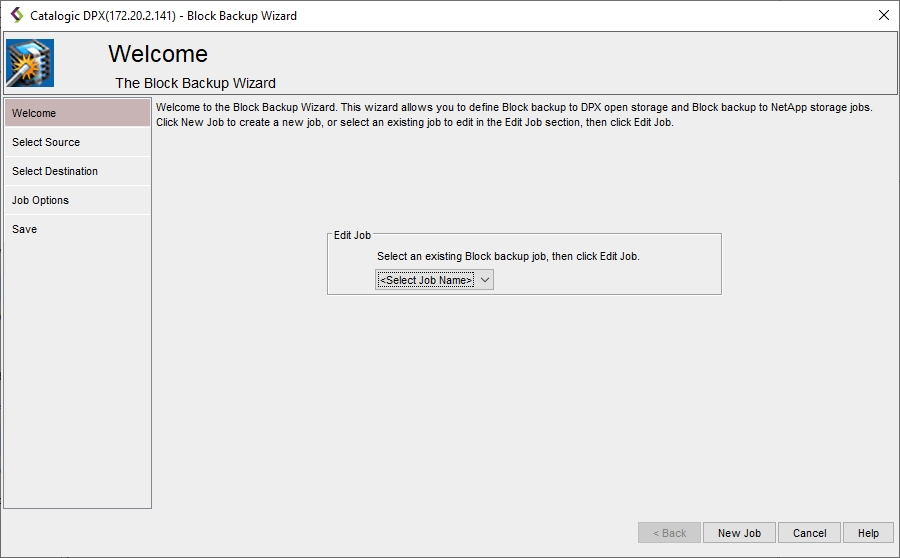

In the web interface, block backups are defined in the Job Manager section. In the desktop interface, block backups are implemented through a backup wizard. This also applies to BMR block backups.
To create a BMR Backup job, follow the instructions below.

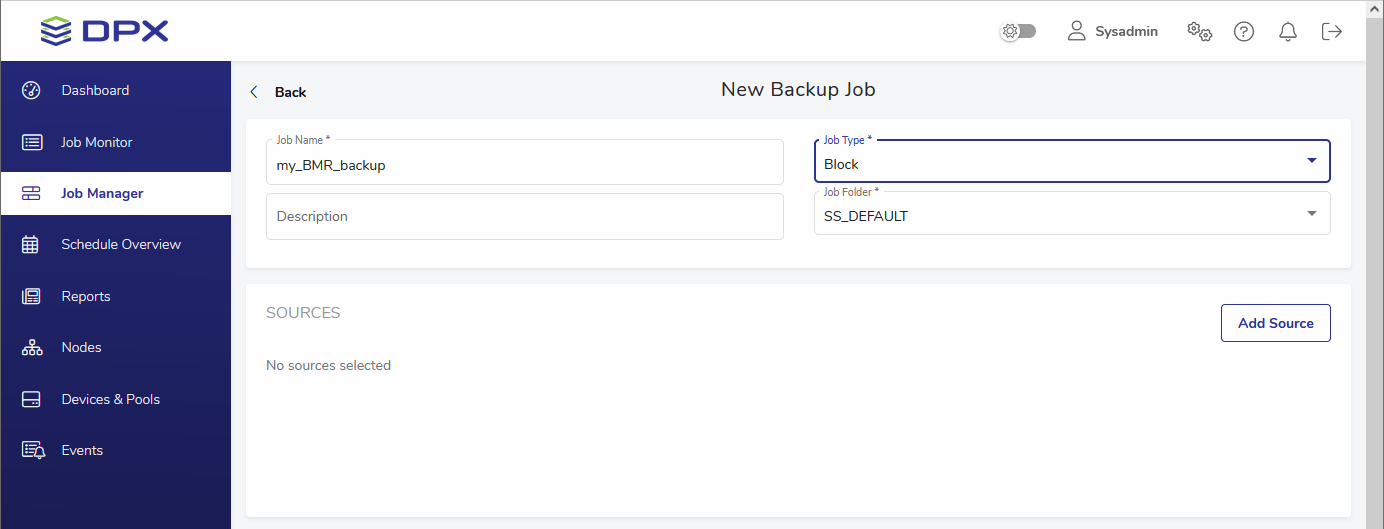

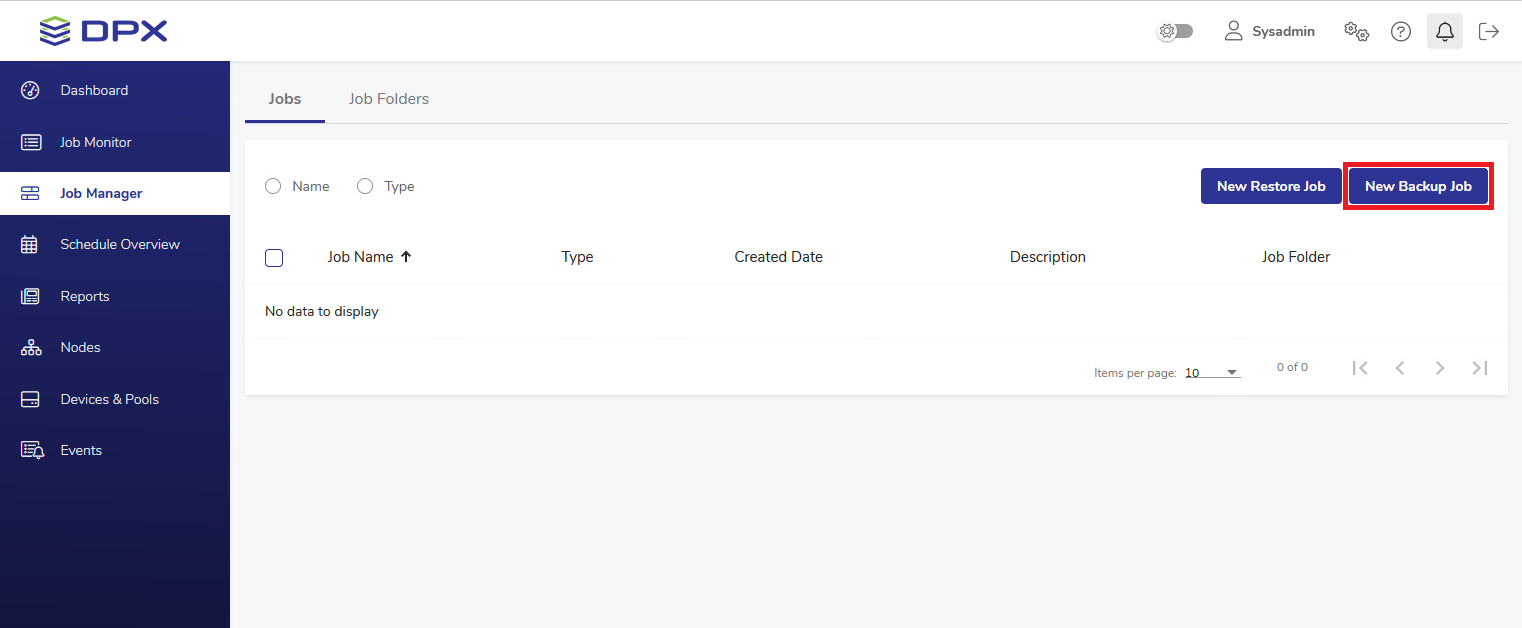

In the main web interface view, go to Job Manager in the sidebar. Then select the New Backup Job button in the upper right corner.
Specify the Job Name (this field may contain up to 16 characters). Add an optional brief description (this field may contain up to 48 characters).

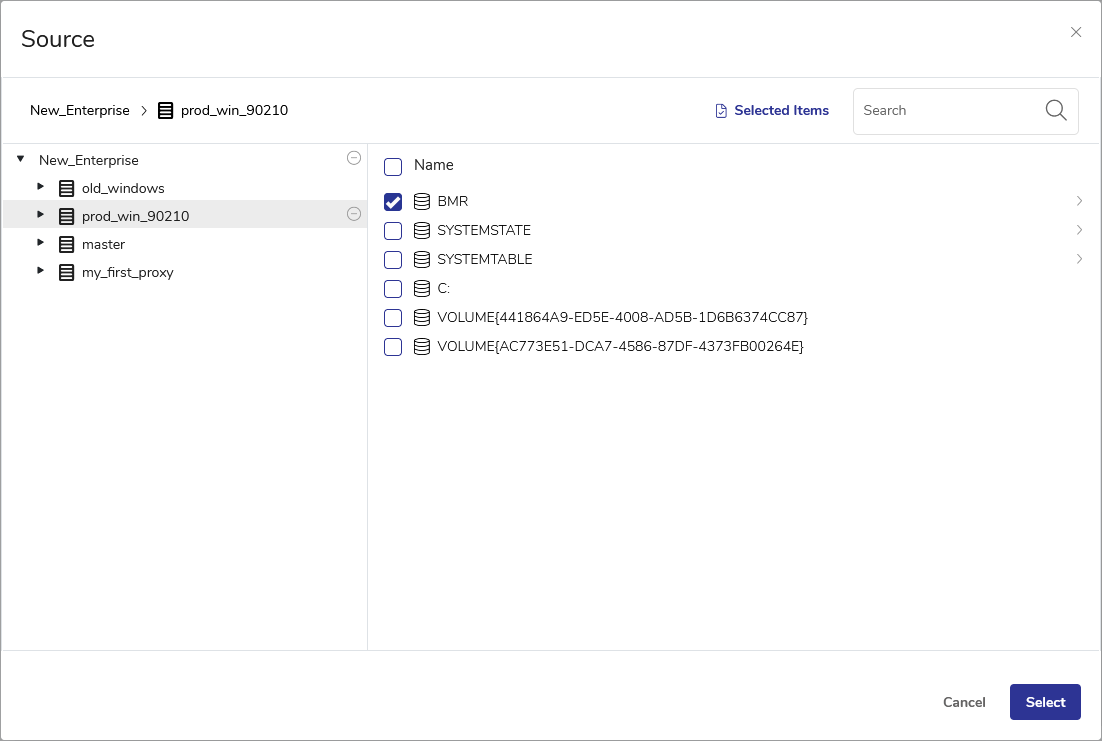

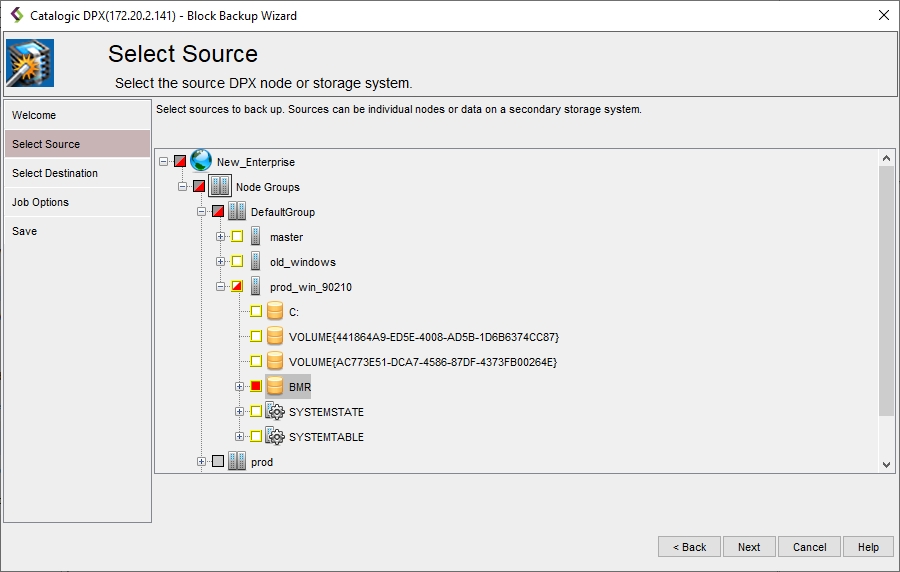

Click Add Source in the SOURCES pane to specify which volumes you want to back up. The Source selection dialog will appear. Select the desired volumes and click Select.

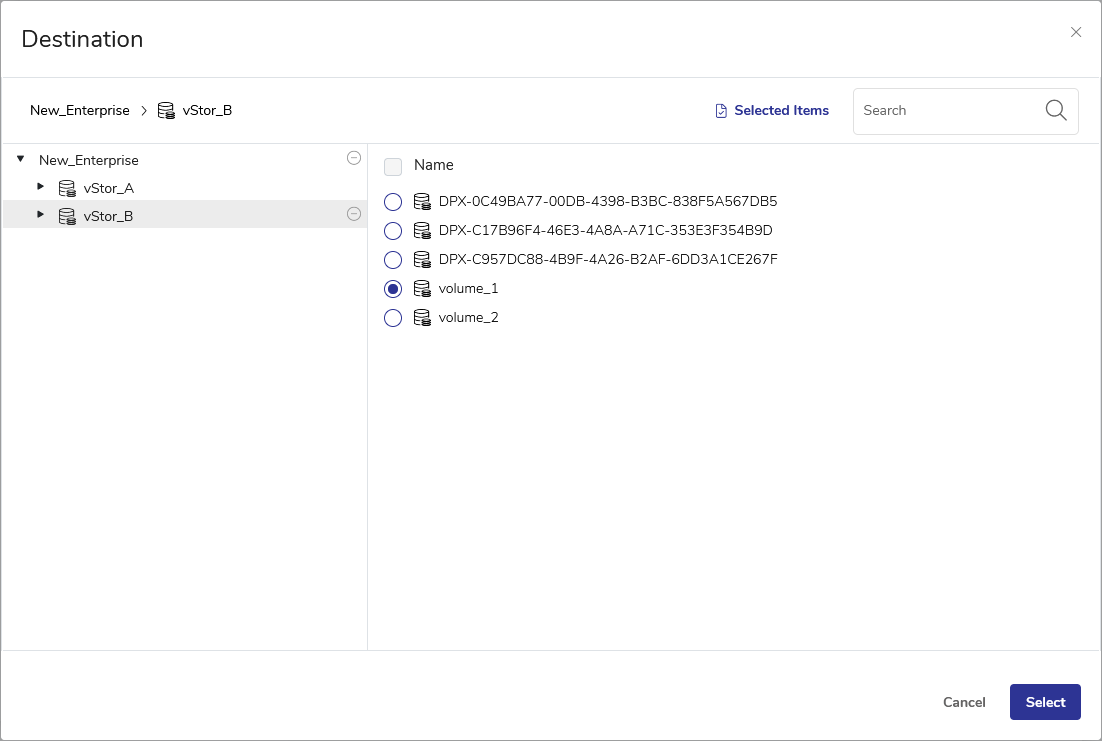

Click Set Destination in the DESTINATION pane to choose the destination for the backup.
If you want to add an Archive backup to your backup job, click Add Archive in the ARCHIVE pane. The Add Archive dialog will appear.
Determines whether a backup tape is stored offsite. DPX adds the Offsite status to the tape.
Toggle on
Indicates in the Catalog that the tape is stored offsite.
Toggle off
Indicates in the Catalog that the tape is stored onsite.
Determines if a backup tape with status Offsite can be appended to.
Toggle on
Tapes in the library with status Offsite can be appended to. The Append Offsite field in the Edit Media Pool dialog must also be set to Yes.
Toggle off
Tapes in the library with status Offsite cannot be appended to.
The Offsite status of a tape can be viewed through the Operate Tape Library function, the Configure Media function, or in the media volume report. Note that when you use the Operate Tape Library function to import a tape with status Offsite, the Offsite status is cleared and the tape becomes available for use.
Limits the number of storage devices valid for use with this job. Use this option if you want to stop DPX from using all the drives in the selected device cluster so that some drives will be available for other purposes.
This is an alternate location where backup data resides. This alternate location could be a replica of the original data using NetApp SnapMirror, copied through Data ONTAP commands, or restored from a tape backup. Data can be restored from an alternate secondary data source directly from the management console.
If the toggle is on, two additional drop-down selection fields are shown, requiring to specify the Alternate Secondary Node and Volume.

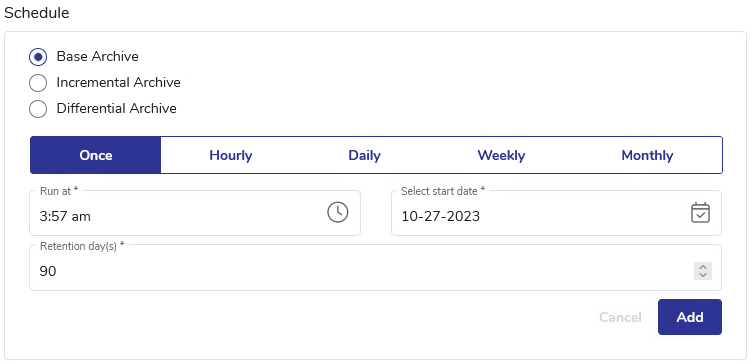

Add schedules for Base, Incremental and Differential Archive backups according to your requirements.
Click Add to save the current schedule.
Multiple schedules may be added using the Add Another Schedule button which will be displayed upon adding the first schedule.
Click Save. The Run Job prompt pane will be shown, where you may determine the retention period (default: 90 days) and choose whether to run the job immediately. Either way, the job will be available in the Job Manager section.
Select Job Type – Block and the Job Folder to store the job in (see the section for more information). By default, all jobs are stored in the SS_DEFAULT job folder.
You may also add a schedule in the SCHEDULES pane for the backup to be run on a regular basis. See for detailed instructions.

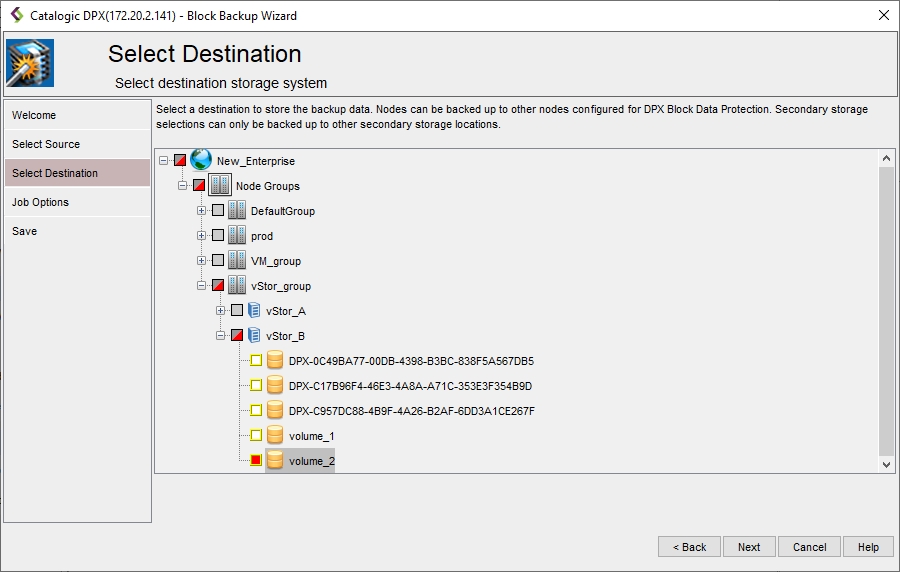

Select the Archive destination (see and for more details).

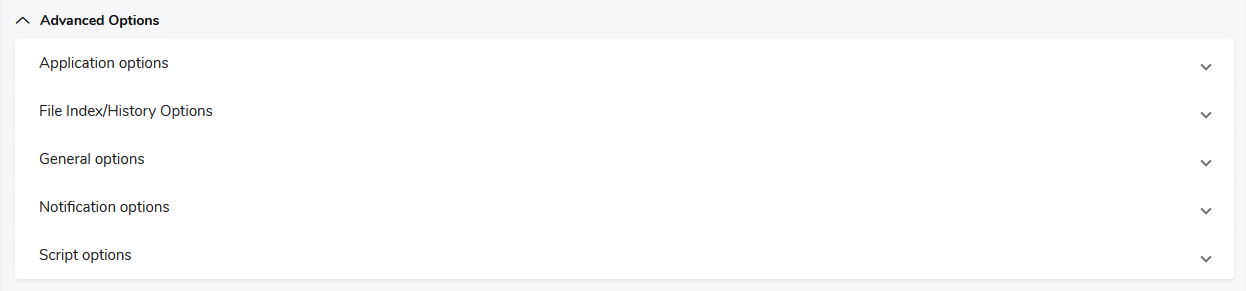

Specify Advanced Options. For details, see .

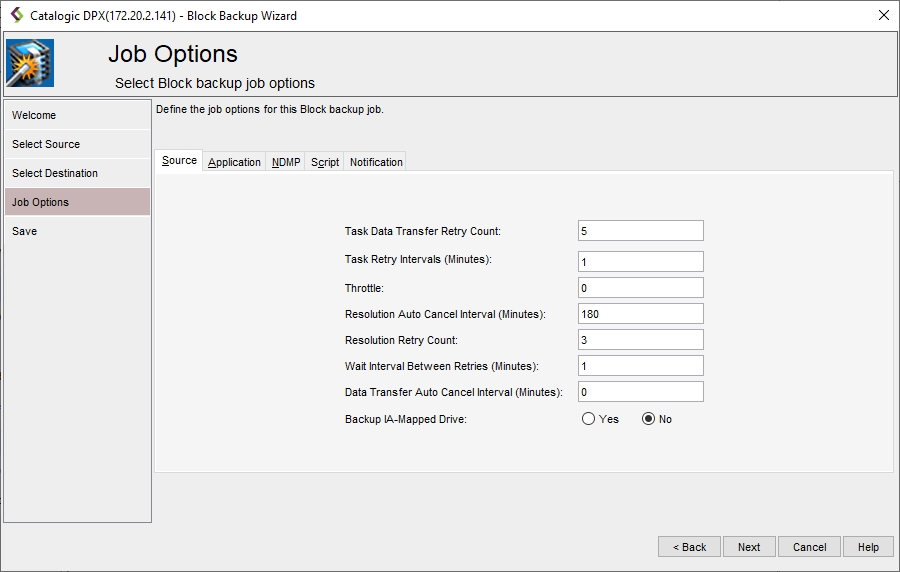

See also. For more information about block backup job options, see .

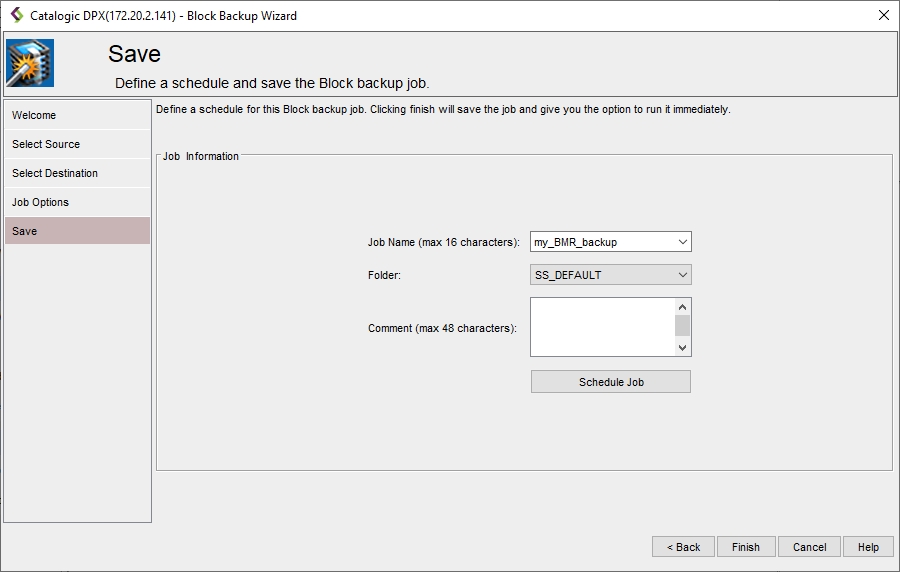

In the final Save screen, you must enter the Job Name (max. 16 characters) and specify the Job Folder to store the job in (the default folder is SS_DEFAULT). You may also add a comment to the job definition or set up a schedule (See ).
Click Finish. The Final Job Run Settings dialog will appear. You may choose to run the job immediately or save it without running. You may also change the retention period (default: 90 days).
To edit a BMR backup job, follow the procedure described in .
To schedule a BMR backup job, follow the procedure described in .
