Catalogic Software vStor

DPX vPlus supports Catalogic vStor Server and integrates with it with extended File System Backup Destination logic.

You can use Catalogic volumes like any other file system (mount a single volume over NFS) or you can use the scripts provided to automatically create and replicate volumes whenever vStor volume is being accessed. This documentation describes a setup with 2 vStor servers and a 1-volume-per-VM approach (with optional replication).

1. DPX vPlus accesses vStor Servers using SSH public key authentication - first generate the key:

   [root@vProtectbuild ~]# sudo -u vprotect ssh-keygen
   Generating public/private rsa key pair.
   Enter file in which to save the key (/opt/vprotect/.ssh/id_rsa):
   Created directory '/opt/vprotect/.ssh'.
   Enter passphrase (empty for no passphrase):
   Enter same passphrase again:
   Your identification has been saved in /opt/vprotect/.ssh/id_rsa.
   Your public key has been saved in /opt/vprotect/.ssh/id_rsa.pub.
   The key fingerprint is:
   SHA256:xeceRtL4kq3zzQrUQH/K5SbiT/nv9QvAtBEfOxeT5us [email protected]
   The key's randomart image is:
   +---[RSA 2048]----+
   |          .. . o.|
   |         o +o ooo|
   |          *o=+=. |
   |         .o%o=o. |
   |        S =+@ o .|
   |         o *.= . |
   |          = +.. .|
   |           * +.Eo|
   |            +.++=|
   +----[SHA256]-----+

2. Add the VM fingerprint to the SSH known_hosts on the node for the primary (and optionally secondary) vStor Server:

   • It must be a known_hosts file that belongs to the vprotect user

   • The algorithm must be set to ssh-rsa

   sudo -u vprotect ssh -o HostKeyAlgorithms=ssh-rsa admin@VSTOR_HOST

   Example:

   [root@vProtectbuild ~]# sudo -u vprotect ssh -o HostKeyAlgorithms=ssh-rsa [email protected]
   The authenticity of host '10.10.10.1 (10.10.10.1)' can't be established.
   RSA key fingerprint is SHA256:65M/6jNBXJTFqti/798STSFeZigRzHMivDNl0t95FNI.
   RSA key fingerprint is MD5:cc:91:7d:17:8e:21:68:19:4b:c9:e4:76:bd:f5:4d:fc.
   Are you sure you want to continue connecting (yes/no)? yes
   Warning: Permanently added '10.10.10.1' (RSA) to the list of known hosts.

3. Copy the key to each vStor Server:

   [root@vProtectbuild ~]# sudo -u vprotect ssh-copy-id [email protected]
   /bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/opt/vprotect/.ssh/id_rsa.pub"
   /bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
   /bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
   [email protected]'s password:
   _
   Number of key(s) added: 1
   _
   Now try logging into the machine, with:   "ssh '[email protected]'"
   and check to make sure that only the key(s) you wanted were added.

4. Open the "BACKUP DESTINATIONS" section on the left menu.

5. Create a new Catalogic vStor Server Backup Destination (choose from the top-right drop-down menu).

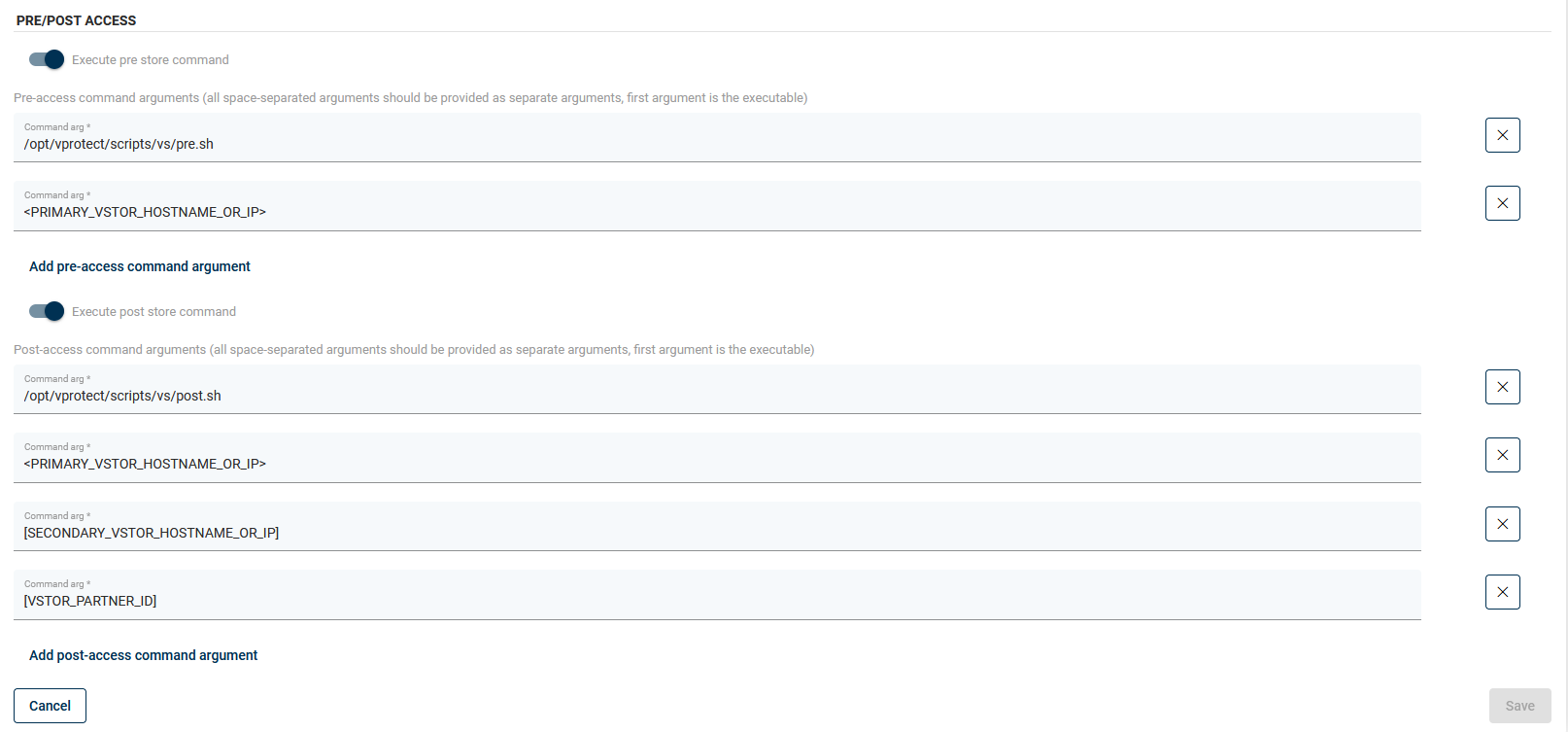

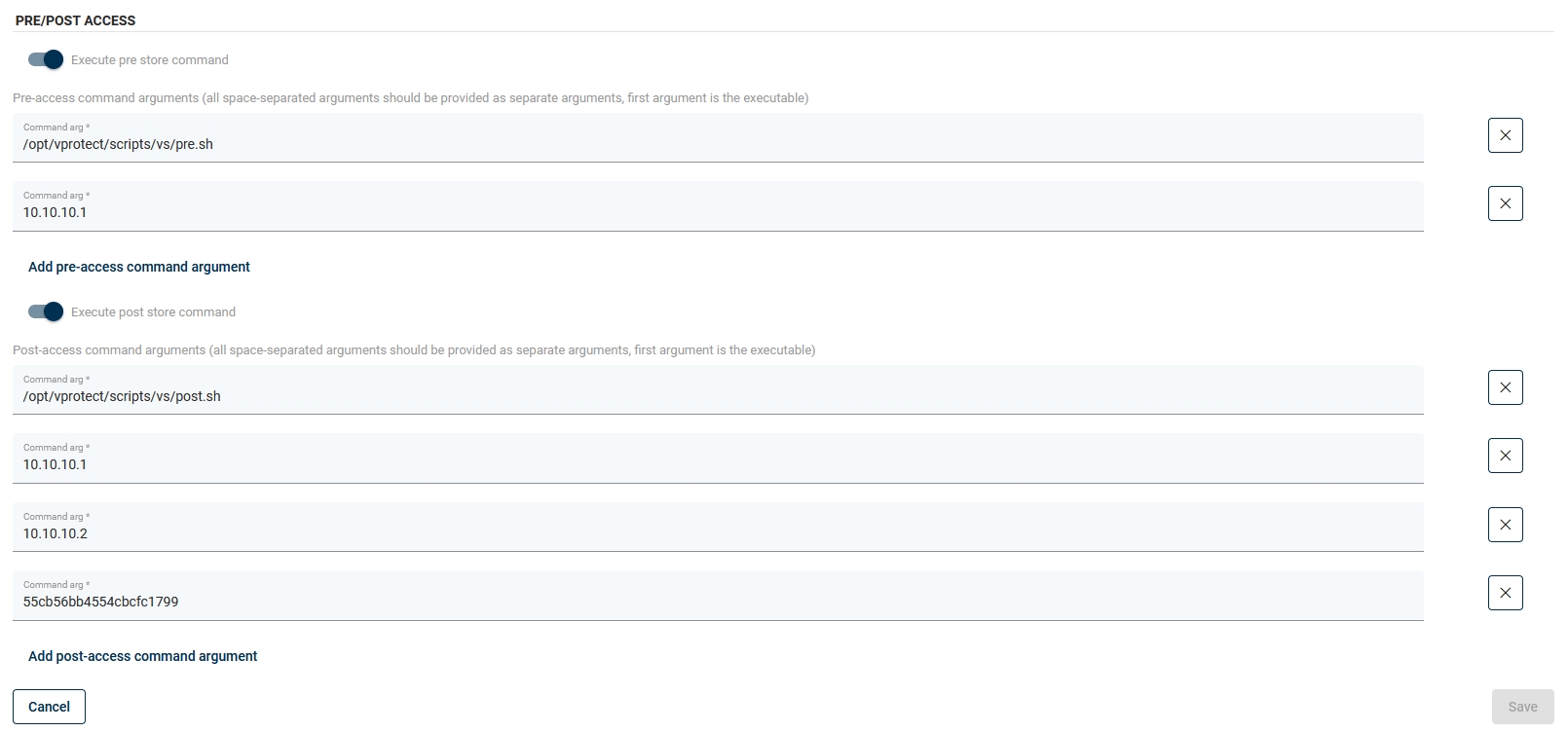

6. Fill in the template with your information.

• FIRST_VS_HOST - your primary vStor Server IP/hostname

• SECOND_VS_HOST - optional, secondary vStor Server IP/hostname, where the data will be replicated to

• VS_PARTNER_ID - optional, secondary vStor partner ID - you can get this ID by running this command on the vStor Server shell:

  [admin@localhost ~]# vstor partner show
  ID                               | MGMT ADDRESS | API PORT | SSH PORT
  55cd380b7dc848bbb439bfd444bc1799 | 10.10.10.2   | 8900     | 22

• If a secondary server is not provided, DPX vPlus will assume that no replication is needed.

1. Initiate backup to test if the scripts have been executed correctly - in the vprotect_daemon.log files you should be able to see messages like this:

   2018-05-04 15:31:39.133  INFO
   [0f2b9705-61a1-44d5-876f-ac81985c4a94] Executing pre/post store command...
