vPlus supports integration with Exagrid. You can create two types of shares (NFS and CIFS), but in this case, we recommend using a CIFS share as the backup destination.

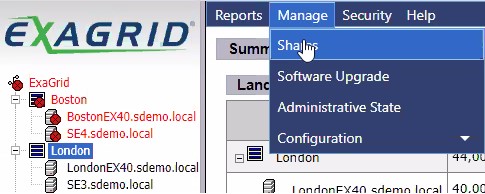

To create a network share, log in to the Exagrid dashboard and go to Manage -> Shares.
Then create a new share. From here, you can create an NFS or CIFS share, depending on the protocol you choose.
As we said before, we do not recommend this method for storing backups, but we will describe the basic steps for creating an NFS share.

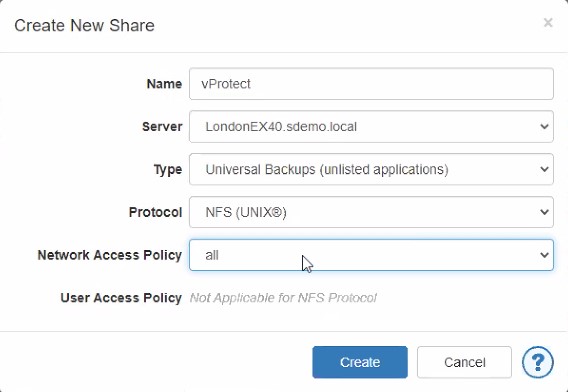

So, after clicking on New Share you'll see this window. Change the Protocol to NFS, configure the rest according to your requirements.

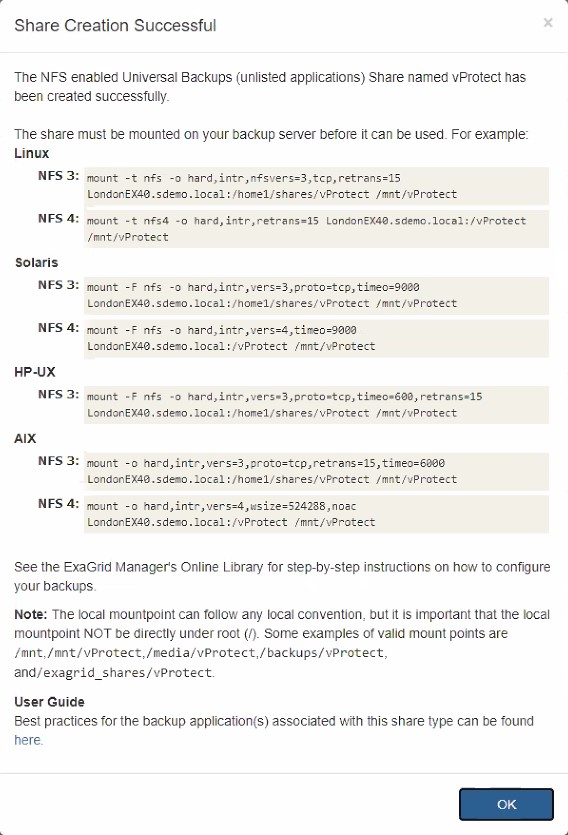

After creation, you will see a summary window with commands that allow you to mount the NFS share under the vPlus node machine.

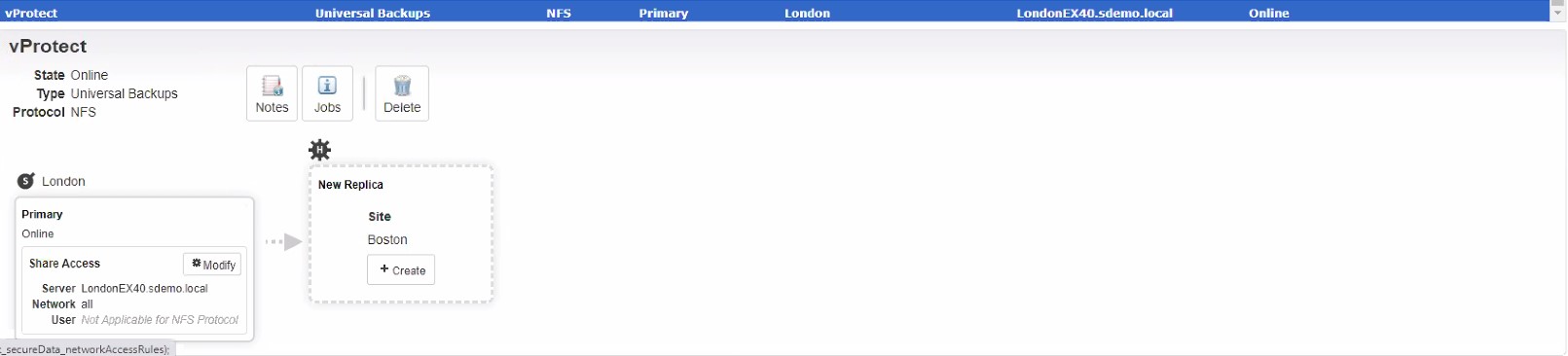

From the menu, you can see that we have a new share.

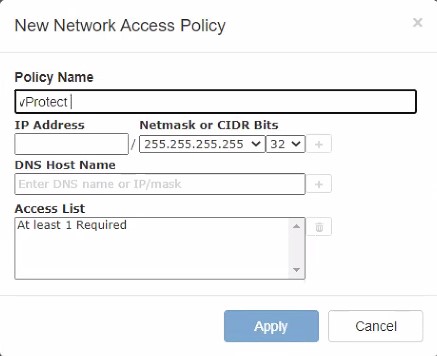

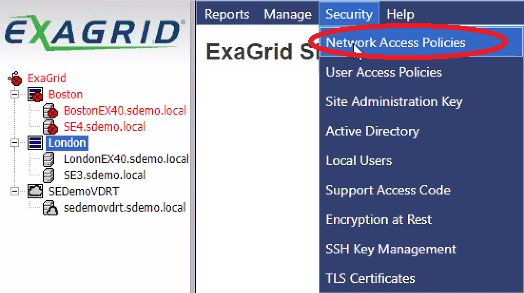

It is good practice to create an NFS share access policy.
As you can see, you can limit access to a single host or the entire address pool. Remember to edit the share and select Access Policy.

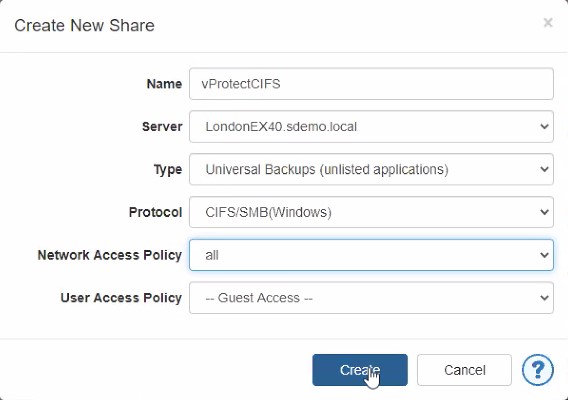

Now it is time for the method we recommended. After clicking New Share you'll see this window. Change Protocol to CIFS/SMB, configure the rest according to your requirements.

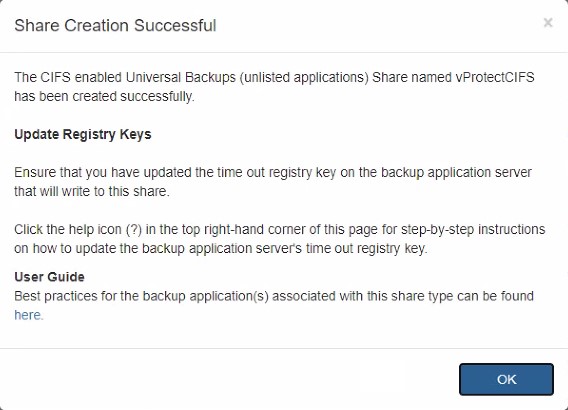

After creation, you will see a summary window with basic information about CIFS share.

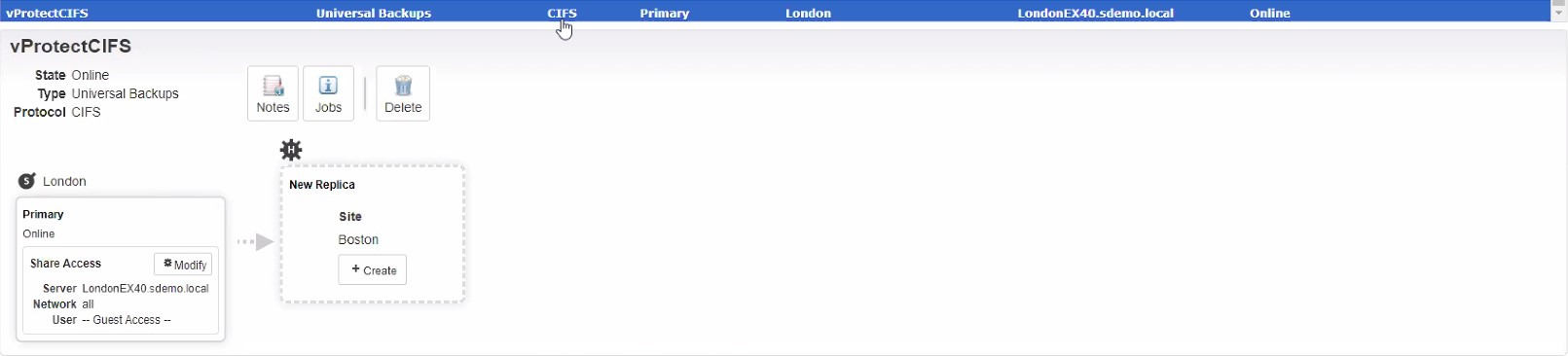

From the menu, you can see that we have a new share.

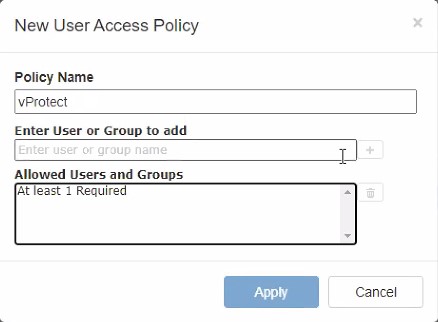

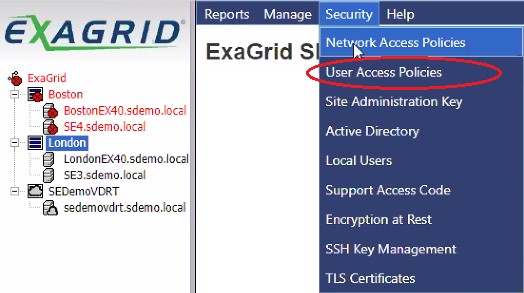

It is good practice to create a CIFS share user access policy.
Select a single user or a whole group of users.
To mount NFS share:
Create an NFS directory mount point on the vPlus node host machine mkdir /directorypath
Mount NFS Share mount -t nfs Exagrid_IP:/sharename /mountdirectory
Check if you are connected with NFS Share df -kh
To permanently add an NFS share, you must edit the /etc/fstab file
Exagrid_IP:/sharename /mountdirectory nfs defaults 0 0
To mount CIFS share:
Install the required packages yum install cifs-utils
Create a mount point directory mkdir /directorypath
To mount a CIFS share mount.cifs //hostname-or-ip_address/sharename /mnt/testmnt -o ro,guest
To permanently add a CIFS share, you must edit the /etc/fstab file //hostname-or-ip_address/sharename /mnt/testmnt cifs ro,guest 0 0

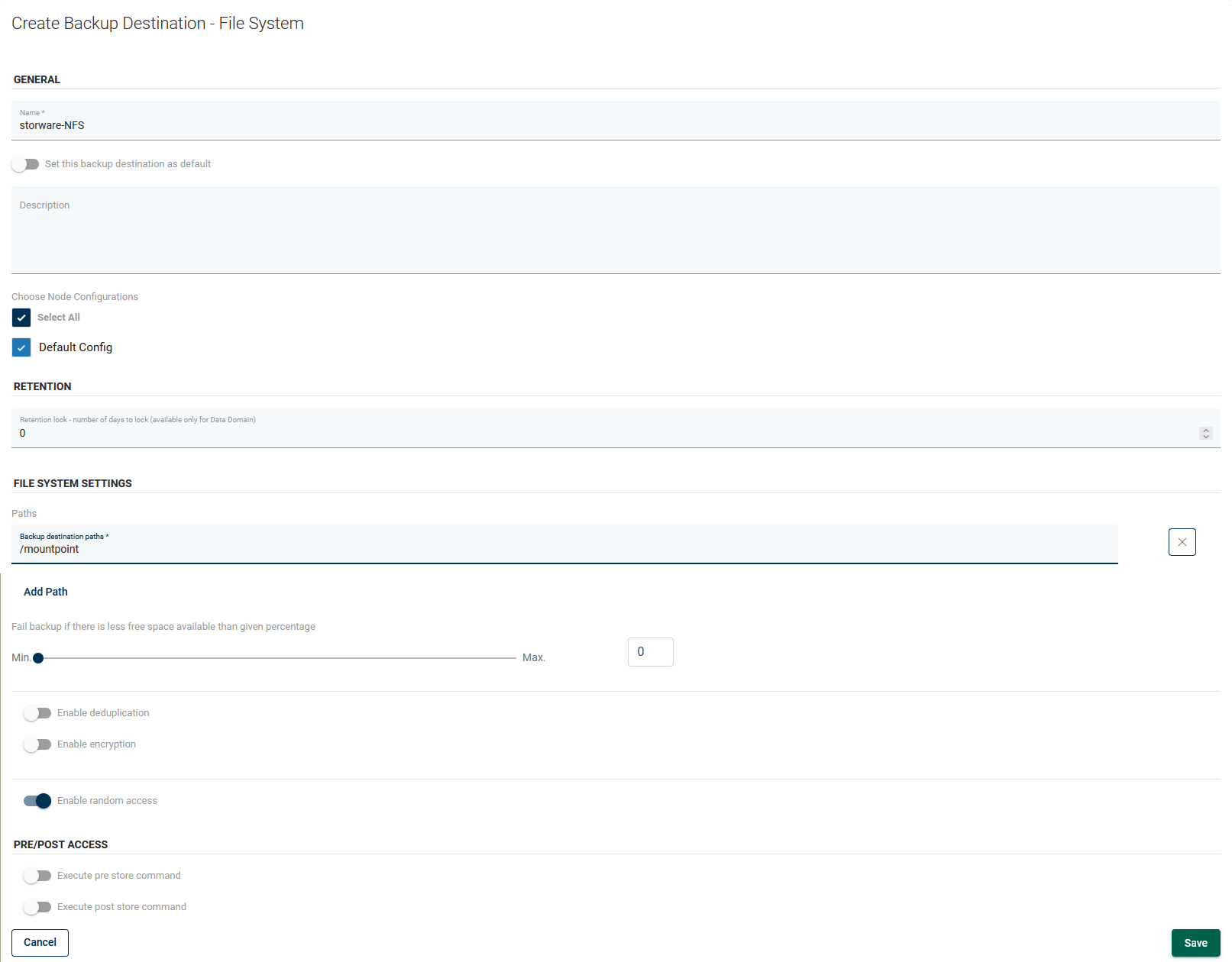

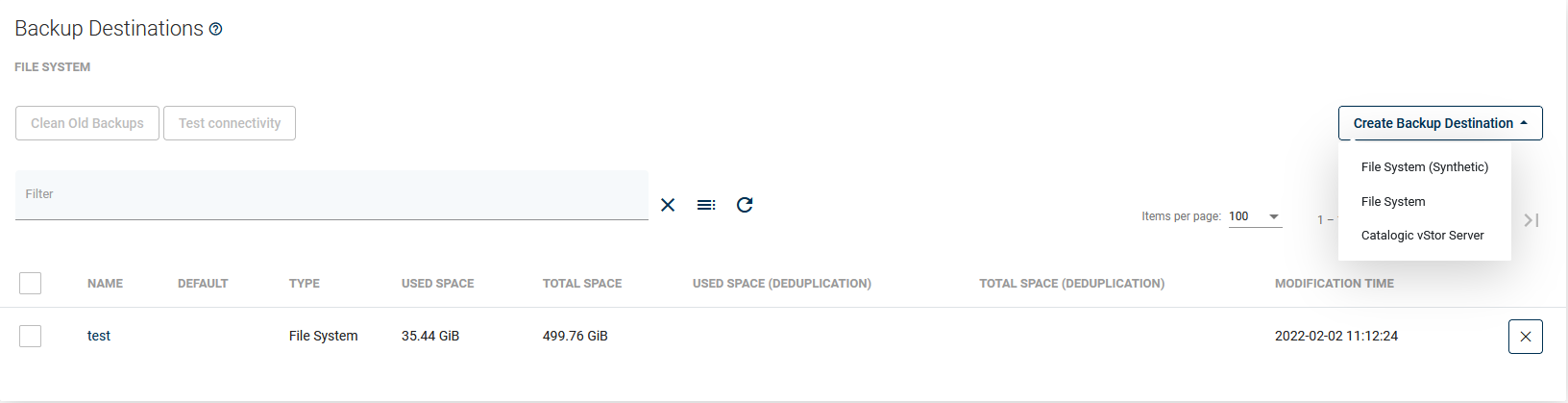

Now we can create a backup destination for our backups. Please log in to the vPlus dashboard and go to the Backup Destination tab on the left side menu. Then choose File system from the list of backup destinations you can create.
You only need to enter the unique name of the backup destination and mount point as the storage path.
