Managing Licenses

The out-of-box version of DPX Master Server comes with the evaluation license which is valid for 30 days. To keep using DPX beyond that date, you need to update the license. Moreover, you have to renew the license when the current one is expiring or after you purchase a new license for additional features, such as block storage capacity, the number of CPU sockets, etc. Contact your account manager for detailed information about the Catalogic DPX license plans.

You can manage your license by registering its license key in DPX. You will receive your license key via e-mail after a new product release or after you purchase an add-on component.

There are three methods to view or update the license key. Typically, you should update the license from the web interface. However, you will not be able to log in if the current license is invalid. In that case, you have to update the license from the Linux shell of the DPX Master Server.

Tip.

Copying and pasting the license key is advised. If you have to type it manually, be sure that all letters in the key are uppercase, except “O” or “I” which are not being used. There are no blanks, spaces, carriage returns, or line feeds in the key. Edit license key files by using a text editor such as vi for Linux or Microsoft Notepad for Microsoft Windows. Do not edit license key files from a different operating system or the editor will make line ending characters that are incompatible with your operating system. Do not use word processors such as Microsoft Word.

Web interface

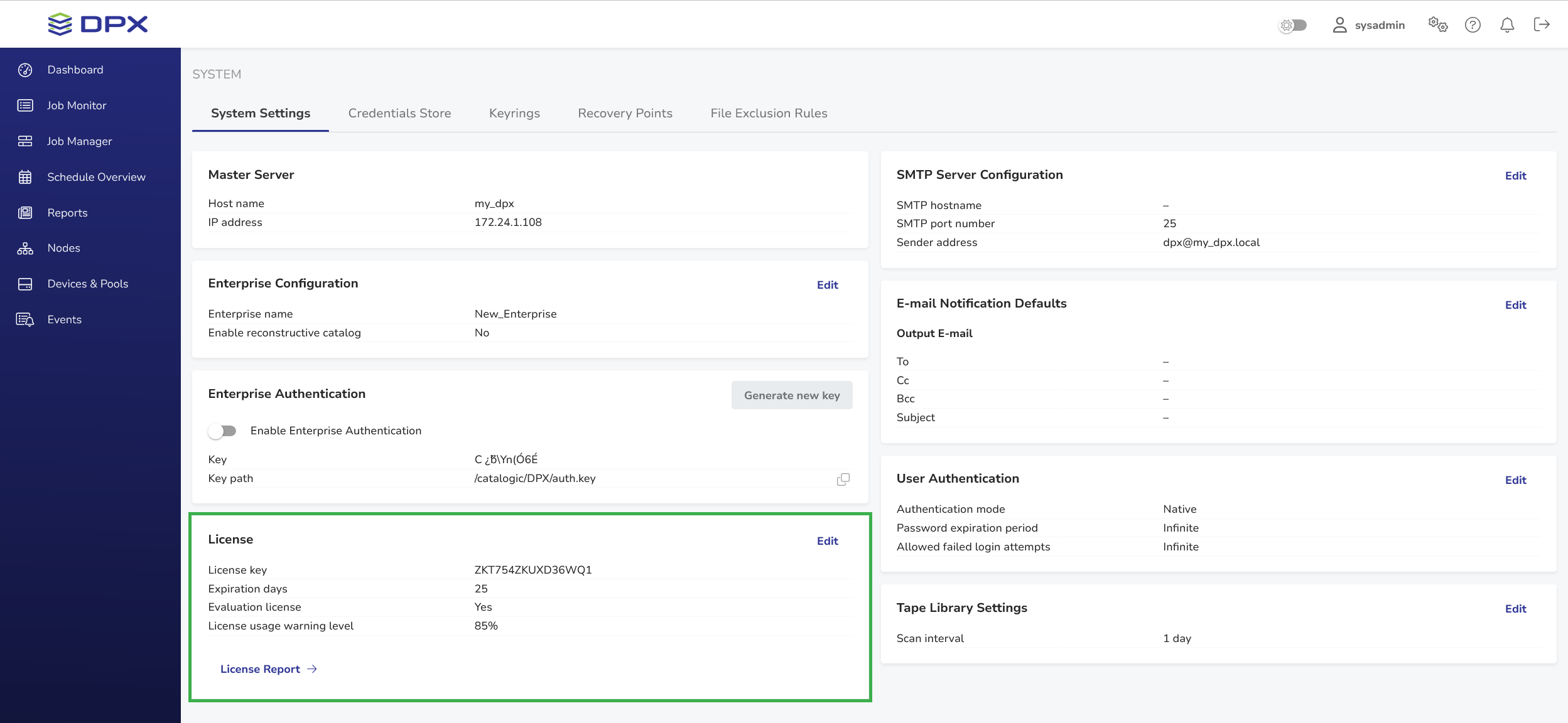

Click the settings icon () in the menu bar to open the System section. In the System Settings tab, the License section displays information about the current DPX license.

To register a new license key, click the Edit button to launch the Edit License dialog window.

Type the new key into the License key entry field and click Save. If the key is valid, your license will be instantly updated.

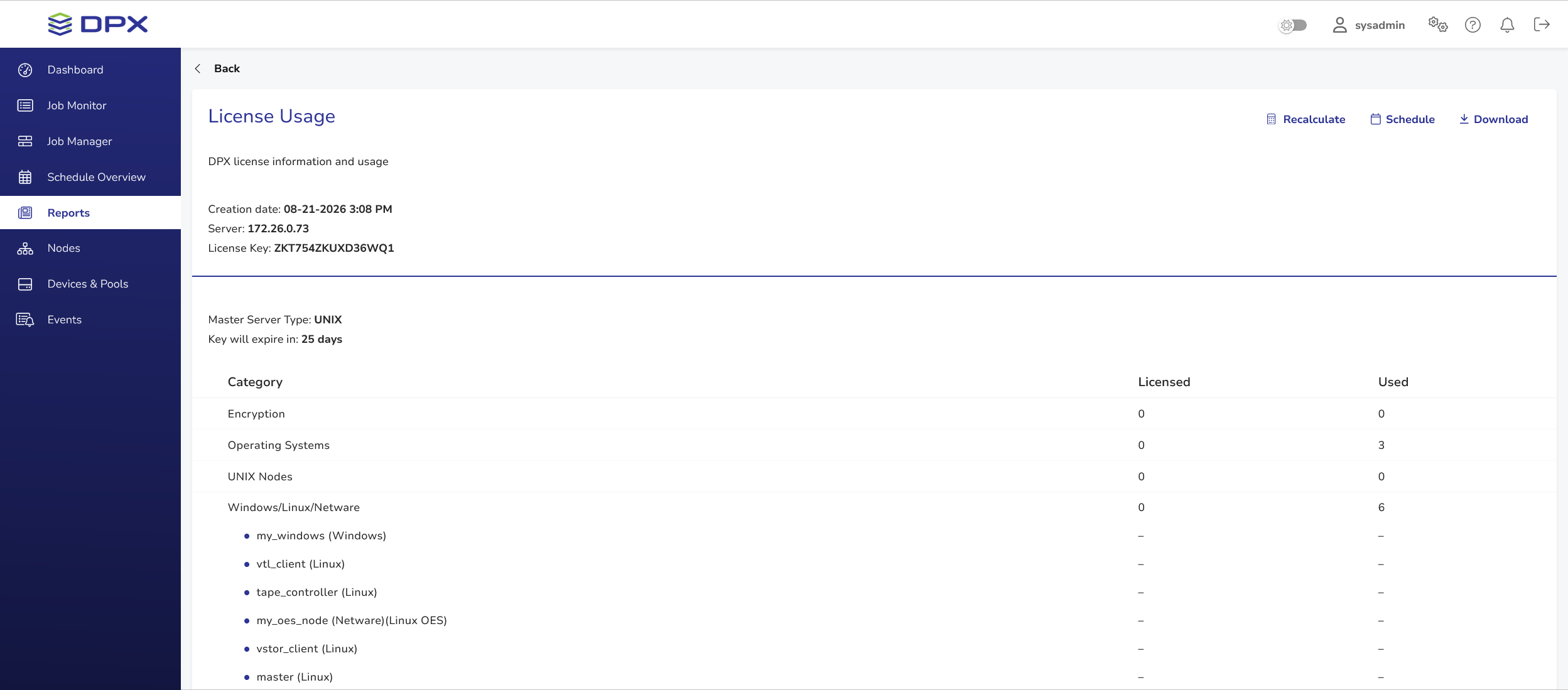

You can also view detailed license usage information as a report. In the License section, click License Report – the License Usage report opens in the Reports section. Use the buttons in the upper right corner to recalculate the report, schedule regular report generation, or download the data.

See also.

For the report scheduling procedure, see Report Scheduling.

Desktop interface

Go to Help > About DPX License or press [Ctrl + B].

You will see the license information of the DPX Master Server in the DPX license window.

The DPX License window displays by category those options you have licensed and the number of licenses you have used in each category. If the entry displays in red, you have exceeded your license count for that option. Exceeding your license count may lead to an incomplete backup or restore.

In addition, you can download the license information in PDF: from the License window menu bar, select File > Show Print-Friendly Version and see the Catalogic DPX License Screen Report on your PDF viewer.

Linux shell

If your license key has expired and you cannot log in to graphical interfaces, log in to the Catalogic DPX Master Server through SSH with the root privilege. See Connecting to DPX Master Server via SSH for more details.

1. Stop the CMAgent service. See Managing the CMAgent for instructions.
2. On the DPX Master Server, go the the directory where Catalogic DPX resides. Typically, the directory is located in /opt/DPX/.
3. Open the text file .ssbe_key with a text editor. Replace its content with the new key and save the file.
4. Start the CMAgent again.
5. Open the DPX web service and log in to ensure the license key has been updated.
