# Adding a Keyring

Keyrings are groupings of DPX ***keys***. These keys are used to derive actual encryption keys for data-encrypted jobs.

{% hint style="info" %} <mark style="color:blue;">**See also.**</mark> To add another key to the keyring, see [Adding a Key](https://docs.catalogicsoftware.com/dpx-4.14/miscellaneous/configuring-keyrings/adding-a-key).
{% endhint %}

To configure a keyring, follow the procedure below.

{% tabs %}
{% tab title="Web interface" %}

1. Open the *Enterprise Information* view by clicking the gear icon ![](https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-91cc61335e0c904e7816bc0d1c9ae56d69fce6b2%2Fgears.png?alt=media) in the header.

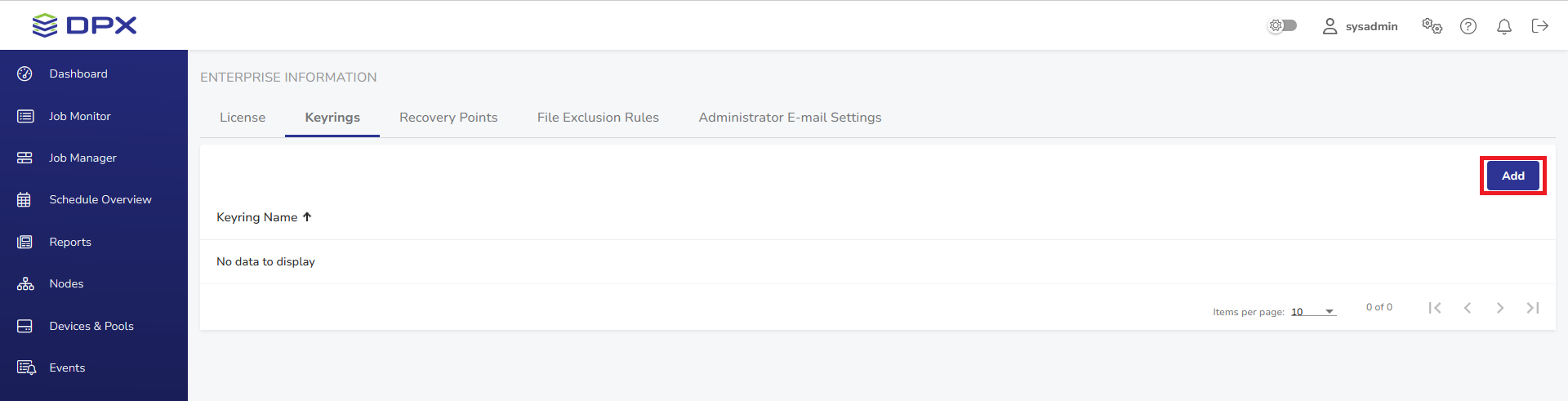

2. Go to the *Keyrings* tab.\
   The tab lists all keyrings created by the DPX administrator.

<figure><img src="https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-a86b314ae5ee3ae8e39289a90624851606cc8426%2FEnterprise%20information%20-%20keyrings%20-%20add%20keyring.png?alt=media" alt=""><figcaption></figcaption></figure>

3. Click **Add**.\

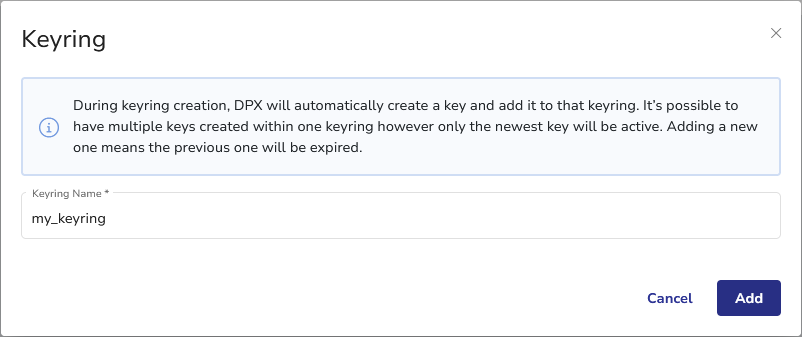

   The *Add Keyring* dialog window opens.

<figure><img src="https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-17cdab6744b06ec726b19c19d5a16067a986ba0e%2FEnterprise%20information%20-%20keyrings%20-%20keyring%20modal.png?alt=media" alt="" width="563"><figcaption></figcaption></figure>

4. Specify the keyring name. Click **Add**.\

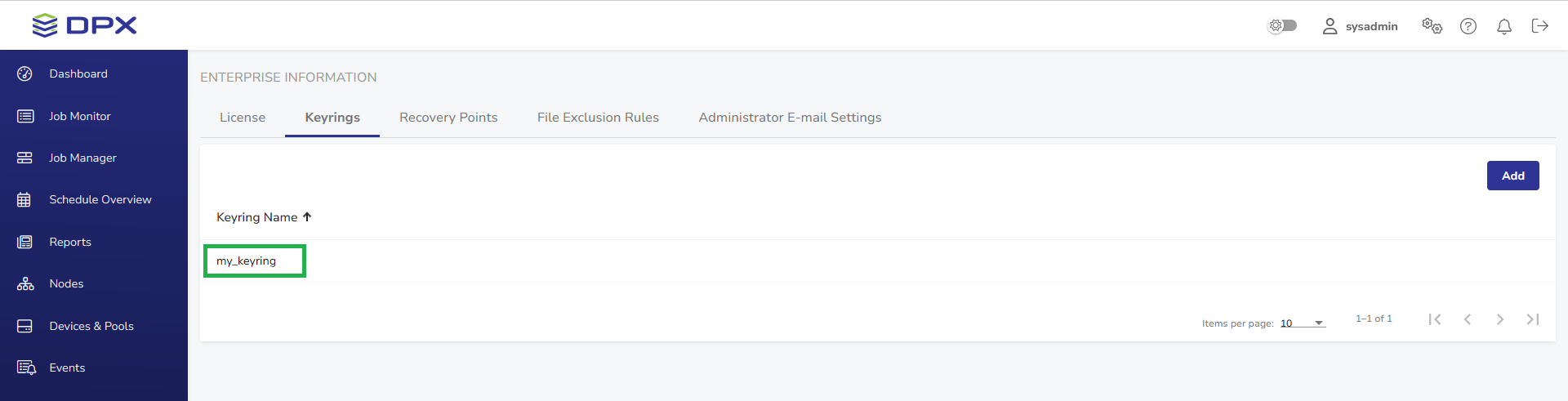

   The keyring is added to your DPX.

{% hint style="info" %} <mark style="color:blue;">**Note.**</mark> The keyring is already created with an active key inside.
{% endhint %}

<figure><img src="https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-00bfd4a87c864cefe05bba0be776191a91d42731%2FEnterprise%20information%20-%20keyrings%20-%20keyring%20added.png?alt=media" alt=""><figcaption></figcaption></figure>
{% endtab %}

{% tab title="Desktop interface" %}

1. Click the **Configure** tab on the Function Tab bar.
2. Click **Keyrings** in the *Configuration Operations* section in the sidebar.
3. Open the ADD KEYRING pane by doing one of the following:
   * Right-click the Enterprise and select **Add Keyring**.
   * From the window menu bar, select **Keyring** > **Add Keyring** \[Ctrl+Shift+K]
   * Select **Add Keyring** from the task panel in the *Add Key* section.

<figure><img src="https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-6094c49c41a3c1fc6e67718c8d89860edf094053%2FJAVA%20-%20configure%20-%20keyrings%20-%20add%20keyring.png?alt=media" alt=""><figcaption></figcaption></figure>

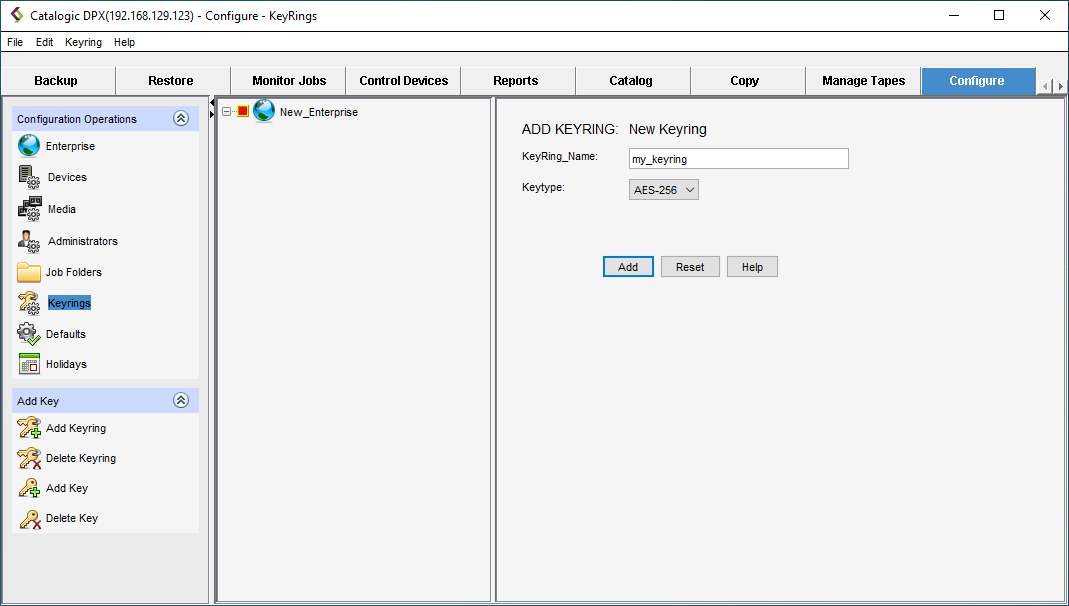

4. In the ADD KEYRING pane, specify the new keyring name.
5. Click **Add**.\

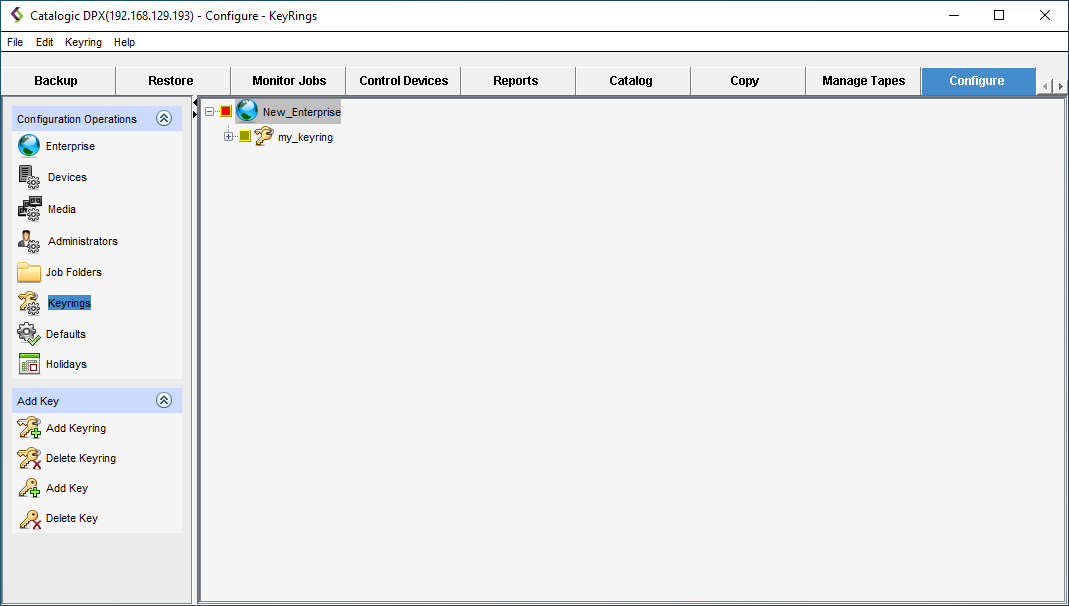

   The keyring is added to the Enterprise.

{% hint style="info" %} <mark style="color:blue;">**Note.**</mark> The keyring is already created with an active key inside.
{% endhint %}

<figure><img src="https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-a637cc72b58a70d06b1d572b41d289add77716a4%2FJAVA%20-%20configure%20-%20keyrings%20-%20keyring%20added.png?alt=media" alt=""><figcaption></figcaption></figure>
{% endtab %}
{% endtabs %}
