# Adding a Client Node from the Master Server Level

This procedure describes adding an already existing DPX Client machine as a node to the DPX Master Server. This procedure is only possible if a DPX Client is already installed on the machine you want to add as a node. The DPX Client and the DPX Master Server must also be in the same network.

#### Before you start, make sure the following conditions are met:

* The Catalogic DPX Master Server is deployed and can be accessed through either web or desktop interface
* At least one Catalogic DPX Client is deployed within the same network

## Procedure

{% tabs %}
{% tab title="Web interface" %}

1. Open a web browser and go to the Master Server’s IP address.
2. Go to the **Nodes** section in the sidebar.\
   A list of all nodes added to the DPX Master Server will be shown.\
   At least one node, *master*, should be already on the list. This is the Master Server itself – compare the IP address in the list and in the web browser’s address bar.\
   The Master Server can also serve as a client to back up data from itself.

{% hint style="info" %} <mark style="color:blue;">**Tip.**</mark> If you expect a node to be already on the list but you cannot find it, try refreshing the view and then search for the node by its name, group or type.
{% endhint %}

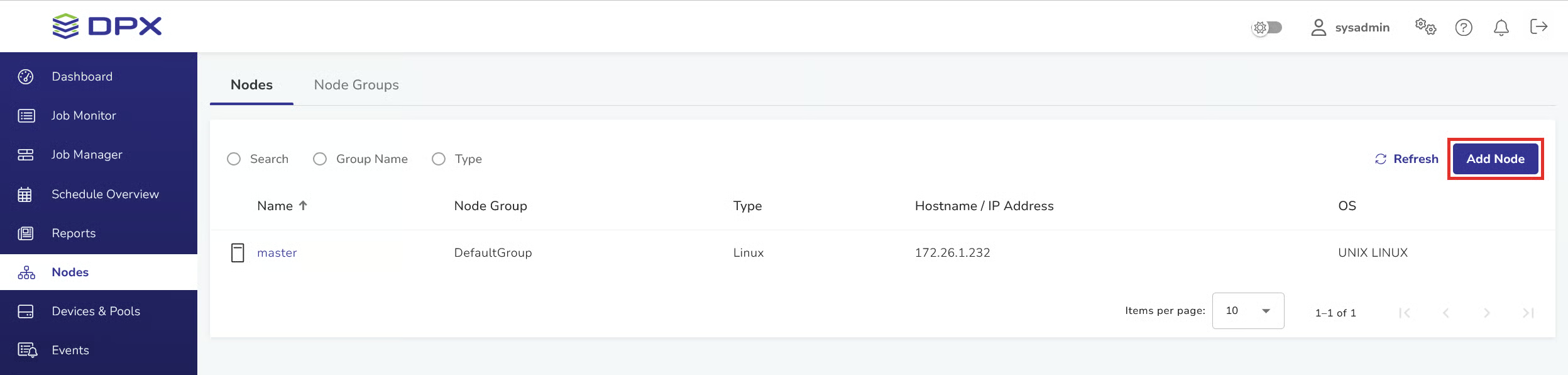

3. Click the **Add Node** button in the upper right corner.

<figure><img src="https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-fd09fee06daab600332c6420e1c322d6a62d8b89%2Fnodes-add_node.png?alt=media" alt=""><figcaption></figcaption></figure>

4. The **Add Node** dialog will open.\
   Select the node Type: *DPX Client*. For other node types, see [Adding Other Node Types to the Master Server](https://docs.catalogicsoftware.com/dpx-4.14/installation-and-configuration/nodes/adding-other-node-types-to-the-master-server).

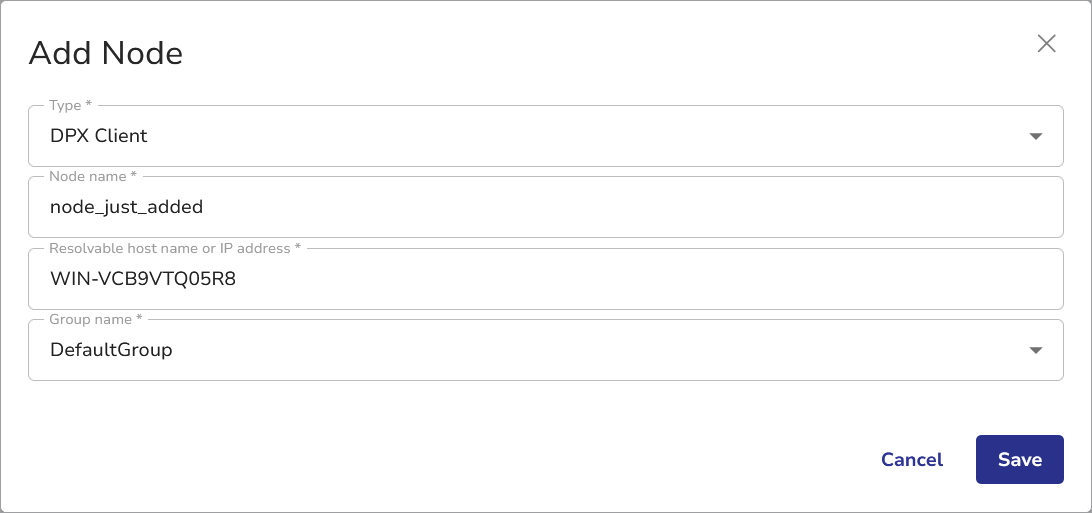

5. Fill in all other required fields: specify the name for the new node, provide a valid resolvable hostname or IP address, and select the group for the node.

{% hint style="info" %} <mark style="color:blue;">**Note.**</mark> The Node Name must be unique throughout the Enterprise, regardless of the Node Group it is saved in.
{% endhint %}

<figure><img src="https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-d5735aa0b54393bb4f431a7171cbd75a18ace274%2Fnodes-add_node-dpx-client.png?alt=media" alt="" width="563"><figcaption></figcaption></figure>

{% hint style="info" %} <mark style="color:blue;">**Tip.**</mark> Providing the hostname is recommended over providing an IP address – in case the IP address changes, the hostname can still be resolved to the new IP address, and the connection between the server and the client will remain functional.
{% endhint %}

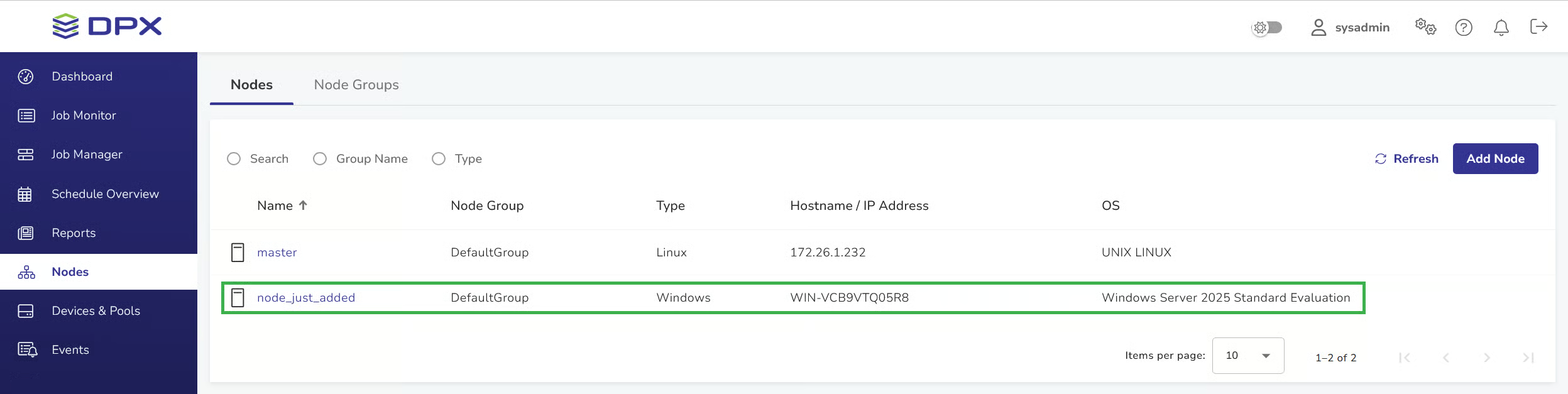

5. Click **Save**.\
   \
   The node is now added and is visible in the nodes list.

<figure><img src="https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-bbed7c5f6362a4fe3c00c2ee3936c40e69adc3dc%2Fnodes-node_added%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="info" %} <mark style="color:blue;">**Tip.**</mark> If you encounter a timeout error or the hostname provided cannot be resolved to a valid IP address, double-check your machine’s firewall settings, ensuring all [Prerequisites](https://docs.catalogicsoftware.com/dpx-4.14/dpx-client/dpx-client-for-microsoft-windows/requirements#prerequisites) for the DPX Client deployment are met, including the ports allowed.
{% endhint %}

{% hint style="info" %} <mark style="color:blue;">**See also.**</mark> [Adding a Node Group](https://docs.catalogicsoftware.com/dpx-4.14/installation-and-configuration/adding-a-new-node-group#web-interface).
{% endhint %}
{% endtab %}

{% tab title="Desktop interface" %}

1. Go to the **Configure** tab and select **Enterprise** under *Configuration Operations*.

   There should be at least one node group already visible, the *DefaultGroup*.\
   You can add a new node to one of the existing node groups or create a new node group (see the next section).

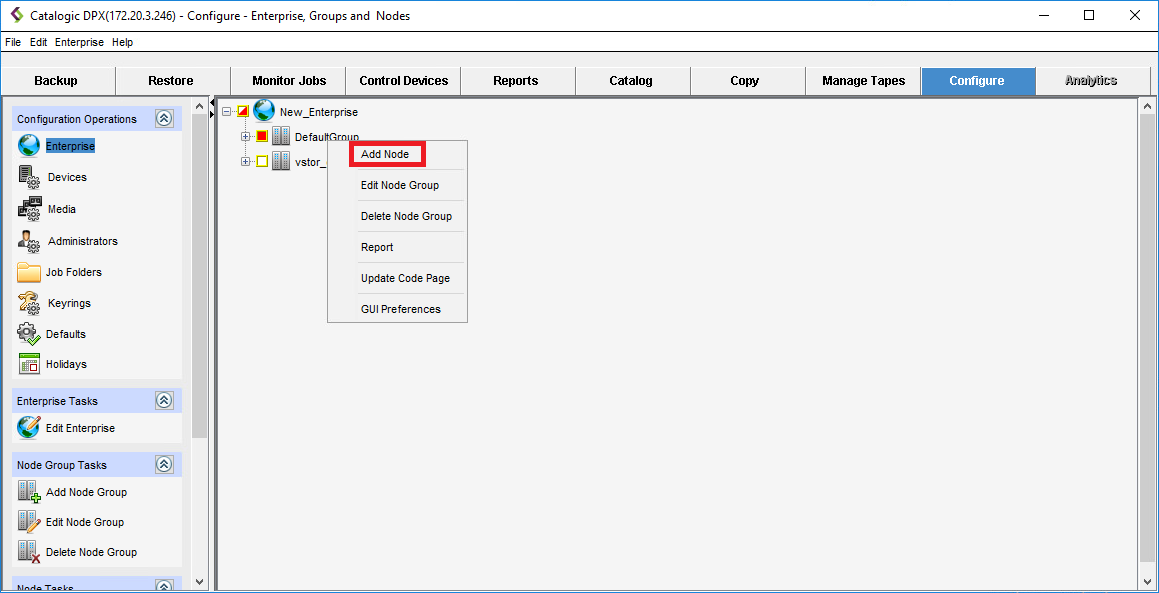

2. Right-click the node group name or icon to display the context menu. Then select **Add Node**. The selection check box next to the node group icon indicates the selection and the *Add Node* dialog appears.

<figure><img src="https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-ee694e69a3c7d2817a09d0b2e8f72772f5111e02%2FAdding%20a%20node%20to%20a%20node%20group.png?alt=media" alt=""><figcaption></figcaption></figure>

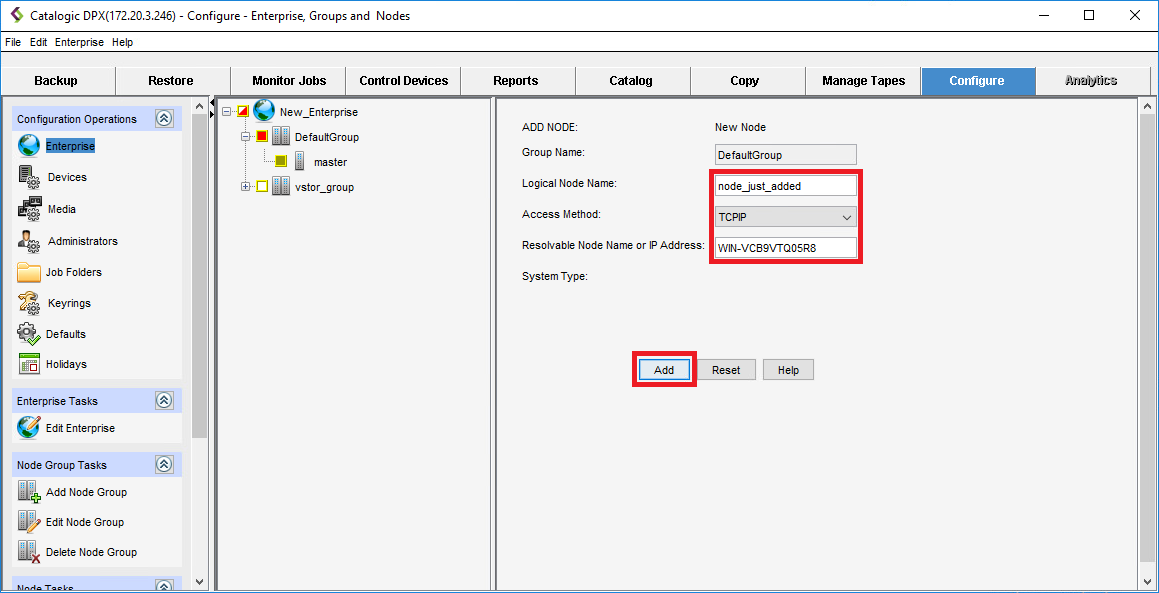

3. Complete the fields in the ADD NODE pane.
4. Enter the logical name for the node. You can use up to 48 characters, no spaces. This is the name that DPX uses for the node. Note the following:
   * Any node that uses an iSCSI initiator must conform to iSCSI initiator and Microsoft machine naming limitations. Some characters may be impermissible in the node name. For example underscore (`_`) should not be used.
   * On Windows, DPX does not support nodes using names reserved by Windows for specific devices: CON, PRN, AUX, NUL. Note also that the string BMR is reserved.
5. Select the Access Method. For DPX Client nodes, this is **TCPIP**.\
   For other node types, see [Adding Other Node Types to the Master Server](https://docs.catalogicsoftware.com/dpx-4.14/installation-and-configuration/nodes/adding-other-node-types-to-the-master-server).
6. Enter the node hostname. Alternatively, you may provide its network IP address.

<figure><img src="https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-01c140555c3a9ad641d89b58b0fd6f0ce4254c22%2FAdding%20a%20node%20(details)%20to%20a%20node%20group.png?alt=media" alt=""><figcaption></figcaption></figure>

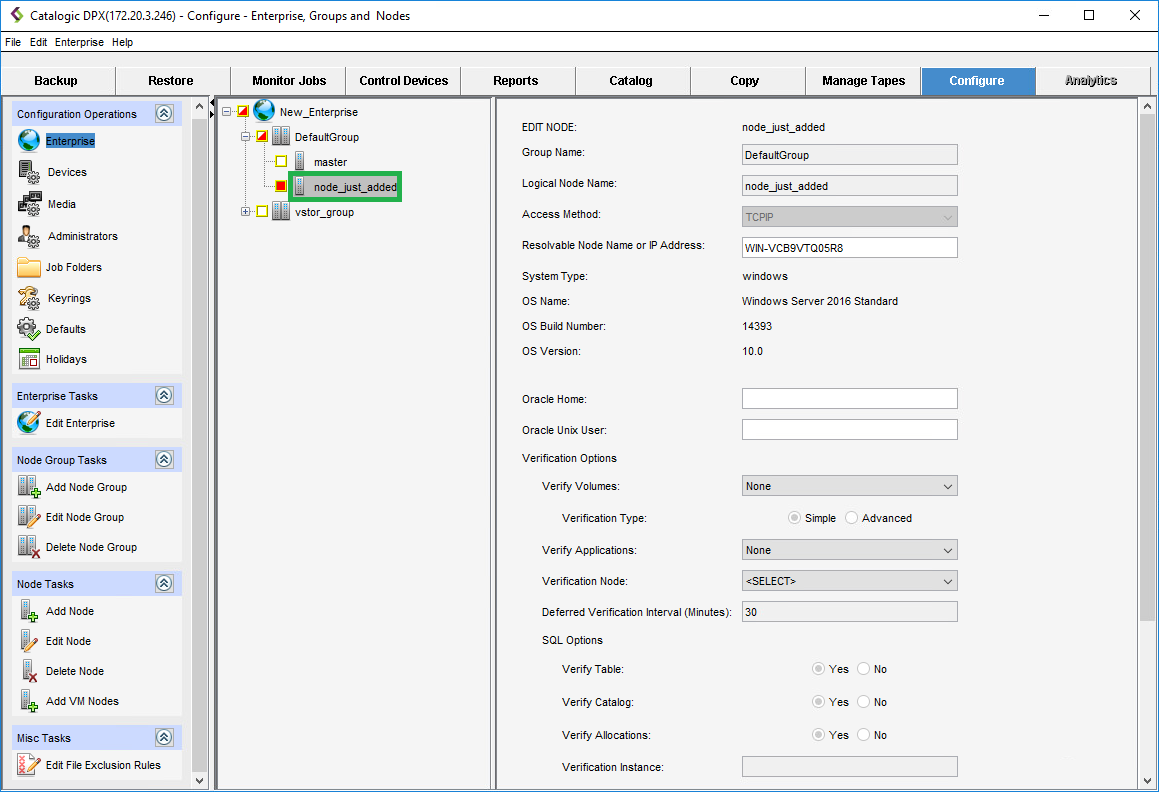

6. Select **Add**.\
   The node is now added. You can see it in your Enterprise tree, and its parameters are visible in the EDIT NODE pane.

<figure><img src="https://136305054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2UXIs2mYtZK3gESAw4ZQ%2Fuploads%2Fgit-blob-c12aea4acfdbd811d8877b8b17d099827e1b1a7c%2FNode%20added%20and%20visible%20in%20the%20tree.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="info" %} <mark style="color:blue;">**See also.**</mark> [Adding a Node Group](https://docs.catalogicsoftware.com/dpx-4.14/installation-and-configuration/adding-a-new-node-group#desktop-interface).
{% endhint %}
{% endtab %}
{% endtabs %}
