Creating an Image Backup Job

Before running an image backup, you need to create an Image Backup Job.

Restrictions. In Catalogic DPX version 4.11, only the desktop interface supports Image backups.

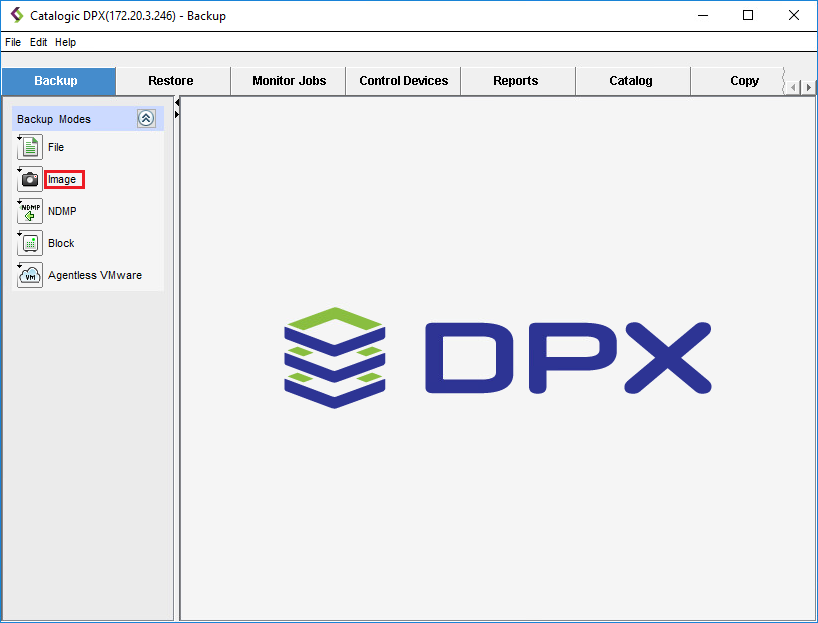

1. In the main desktop interface window, go to the Backup tab, and from the Backup Modes section in the task panel, choose Image.

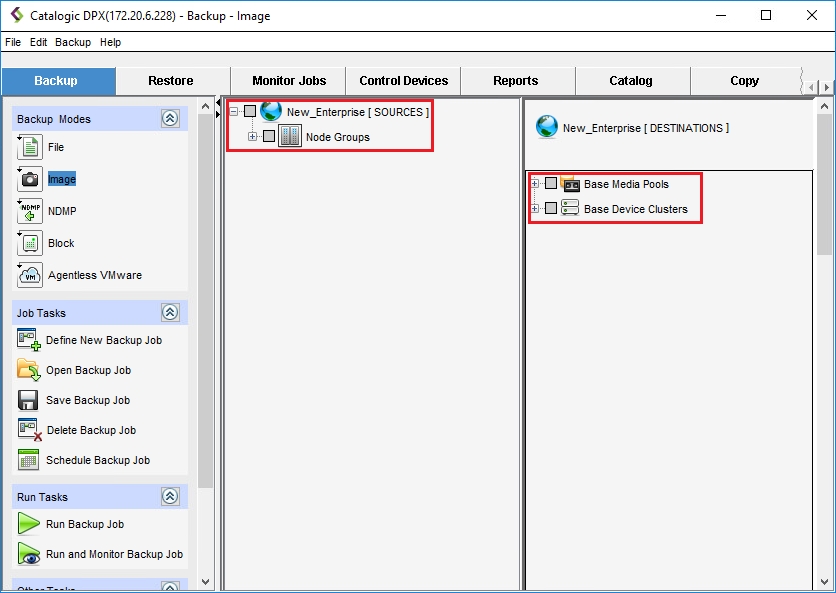

   Two additional panes will appear. You are already in the defining new image backup job, so there is no need to click the Define New Backup Job button under Job Tasks.

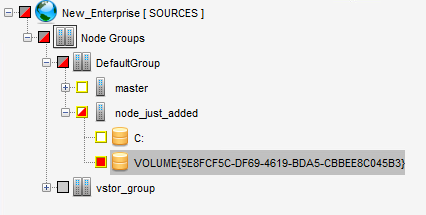

2. Specify the Image backup source in the middle pane. You can drill down only as deep as to the volume level.


3. Specify the Image backup destination in the right-hand side pane. Expand the tree as necessary.

Note. Before running a backup job, you need to save it. Once saved, a previously defined job can be modified, run, or deleted. If you try to leave the job creation view without saving the changes, you will be prompted to either save or discard changes before leaving.

If you select Define New Backup Job, all unsaved changes will be lost.
